Choosing a deadbolt for a newer home built after 2000 is relatively straightforward. Choosing one for a pre-1960s bungalow near Crystal Lake Park or a century-old wood-frame rental near UIUC is a different problem entirely, and the articles ranking for this topic on Google do not address it.
The standard deadbolt guides, including the major product review sites reviewed for this article, test locks on modern doors with standard dimensions and assume a 2-1/8 inch bore hole and 1-3/4 inch door thickness. Older Urbana homes often have neither. Before recommending specific locks, this article explains what older doors require that newer installations do not.
What Makes Older Urbana Homes Different for Deadbolt Installation
Most older homes in Downtown Urbana, the Crystal Lake Park neighborhood, and the pre-1960s housing stock surrounding UIUC were built when door standards were different. Two issues come up consistently in the field when installing best deadbolts for exterior doors on these properties.
Non-Standard Door Thickness
Modern exterior doors run 1-3/4 inches thick. Older residential doors frequently run 1-3/8 inches. Most modern deadbolts accommodate both, but you must verify before purchasing. A deadbolt cylinder that protrudes too far for a thinner door creates a visible gap at the rose plate that degrades both function and security. The Schlage B60N and Kwikset 980 both accommodate 1-3/8 to 1-3/4 inch door thickness with their standard installation hardware, which is why both appear in this guide. Not every Grade 1 lock on the market does.

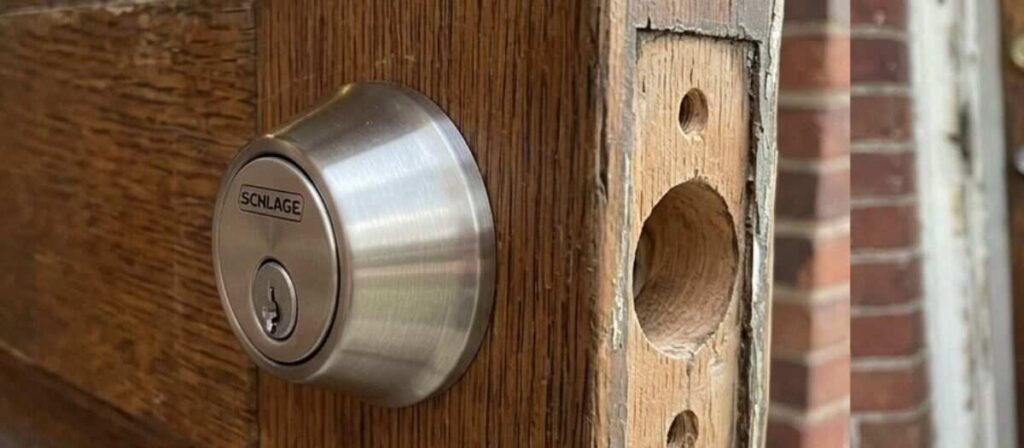

Mortise vs Cylindrical Bore Preparation
This is the detail every competitor article misses entirely. Many Urbana homes built before 1950 have mortise lock preparations cut into the door edge rather than the standard 2-1/8 inch cylindrical bore hole used by modern deadbolts. A mortise preparation is a rectangular pocket routed into the door edge to house a full mortise lock body. You cannot install a modern cylindrical deadbolt into a mortise preparation without either filling the mortise pocket and boring a new hole, or using a mortise-compatible deadbolt cylinder.
If your door has a mortise preparation and you want to upgrade security without damaging the original door stock, a mortise deadbolt conversion or a period-appropriate replacement mortise lock is the correct path. A licensed locksmith should assess the door before any product purchase is made on a pre-1950 property.
What Competitors Don't Tell You
Top Deadbolt Recommendations for Older Urbana Exterior Doors
With door compatibility established, here are the specific locks that perform well on older Urbana properties, organized by security level and use case.
Schlage B60N: Best Overall for Older Homes
The Schlage B60N is the most consistently recommended Grade 1 residential deadbolt among licensed locksmiths in Illinois, and it earns that recommendation specifically for older homes because of its mechanical tolerance and adjustable backset.
It carries an ANSI Grade 1 rating, the highest residential security classification, and a AAA rating from the Builders Hardware Manufacturers Association. It includes a hardened steel insert in the bolt that resists sawing, anti-pick pins in the cylinder, and a bump key resistance design that outperforms every Grade 2 and Grade 3 alternative at its price point.
Critically for older Urbana doors: the B60N accommodates both 2-3/8 inch and 2-3/4 inch backset measurements and fits door thicknesses from 1-3/8 to 1-7/8 inches. This range covers the vast majority of pre-1960s Urbana residential doors. Street price runs $35 to $55 at hardware stores; installed by a licensed locksmith in ZIP codes 61801 and 61802, expect $85 to $140 total including hardware.
The B60N uses Schlage’s C keyway, which is not compatible with Kwikset keys. If your property has existing Kwikset hardware, you have two options: convert all locks to Schlage during the same visit, or stay within the Kwikset ecosystem for keying-alike convenience.

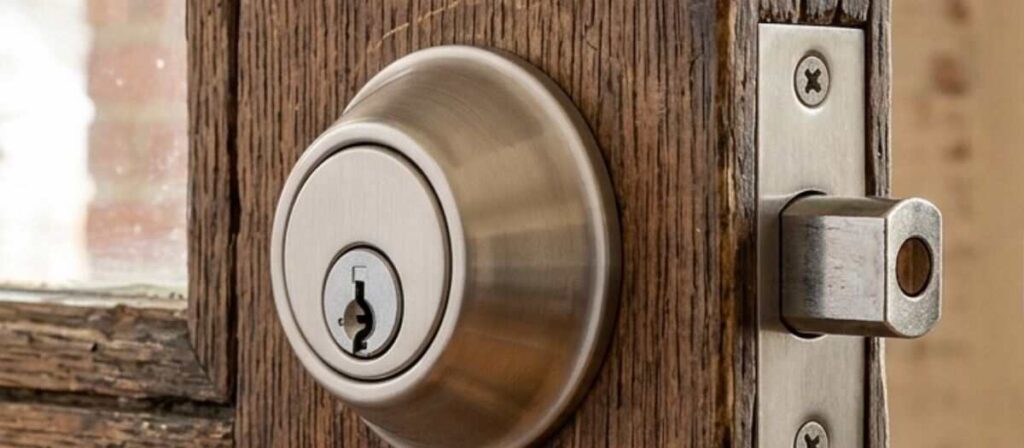

Kwikset 980: Best Grade 1 for Kwikset-Compatible Properties
The Kwikset 980 is the closest Grade 1 equivalent in the Kwikset product line, offering ANSI Grade 1 certification with a 1-inch bolt throw and drill-resistant hardened steel insert. It does not carry the same AAA BHMA rating as the Schlage B60N, but it exceeds Grade 1 requirements on bolt strength and forced entry resistance.
Its key advantage for older Urbana properties is keyway compatibility. If your existing locks are all Kwikset, the 980 can be rekeyed to your current key, eliminating the need to replace every cylinder on the property at once. This is a meaningful cost consideration for landlords managing multiple units near Campustown, where Kwikset hardware is common in the rental stock built during the 1970s and 1980s.
Street price: $40 to $65. Installed: $90 to $150 total.
Medeco M3: Best High-Security Option for Historic Properties
The Medeco M3 is the correct choice when key control and pick resistance matter more than cost. It carries ANSI Grade 1 certification with an additional high-security designation, uses rotating pins and a sidebar mechanism that defeats standard picking techniques, and features a restricted keyway that cannot be legally duplicated at hardware store kiosks.
For owners of historic properties near Downtown Urbana who want maximum security without altering the door’s original character, the Medeco M3 installs into any standard cylindrical bore and fits 1-3/8 to 1-3/4 inch door thicknesses. The restriction on key duplication is both a security feature and a practical limitation: replacement keys must be ordered through an authorized Medeco dealer.
Street price: $150 to $250. Installed by a licensed locksmith: $250 to $400 total depending on cylinder configuration.
The Comparison Table Every Guide Skips
| Service | Type | Cost Per Lock | Notes |
|---|---|---|---|
|
Single cylinder rekey |
REKEY |
$20–$50 |
During same visit as lockout or service call |
|
Standalone rekey appointment |
REKEY |
$80–$170 |
Includes service call fee + per-lock cost |
|
Whole-home rekey (3–5 locks) |
REKEY |
$120–$250 total |
Single visit, all keyed alike if requested |
|
Standard residential replacement |
REPLACE |
$85–$200 |
Kwikset or Schlage, parts + labor |
|
Grade 1 / high-security upgrade |
REPLACE |
$250–$500 |
Medeco, Mul-T-Lock, Schlage B-series |
|
Smart lock / keypad installation |
REPLACE |
$200–$450 |
Depends on brand and wiring requirements |

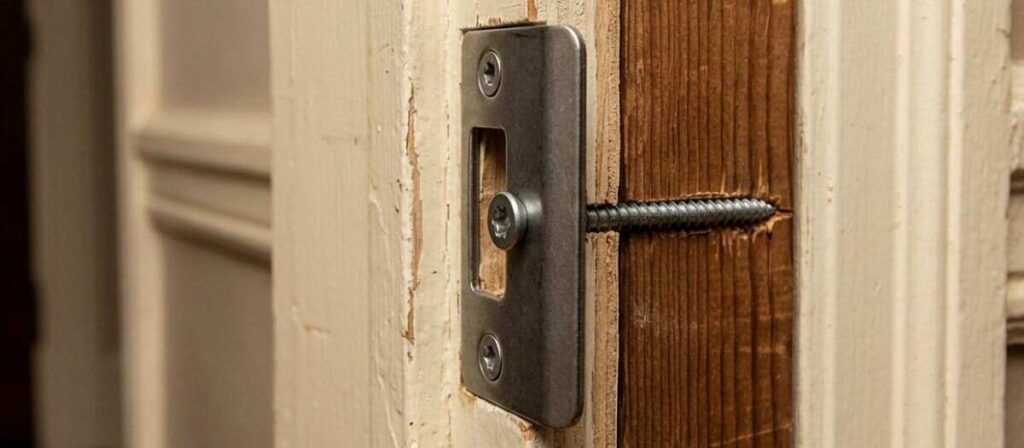

The Strike Plate Problem No One Talks About
Every deadbolt guide published by the major competitors focuses on the lock cylinder. None of them explain that the strike plate is statistically more important than the lock brand for real-world forced entry resistance.
The majority of residential break-ins involve kicking through the door frame, not picking or drilling the lock. A Grade 1 deadbolt with a standard builder strike plate secured by 3/4-inch screws will fail under a single solid kick because the screws only penetrate the door casing, not the structural framing. The deadbolt bolt throws correctly and the cylinder is never touched.
Upgrading to a reinforced strike plate secured with 3-inch security screws that reach the structural framing behind the casing costs $10 to $30 in hardware and takes fifteen minutes to install. This single upgrade does more to prevent kick-in entry than the difference between a Grade 2 and a Grade 1 deadbolt.
For older Urbana homes where wood door frames have shrunk, swelled, and been repainted dozens of times over decades, confirming that your strike plate screws actually reach structural wood rather than just casing material is worth a fifteen-minute inspection before any lock upgrade discussion begins.
Products like Door Armor or Door Jamb Armor go further, reinforcing the entire frame with steel wrap. These run $50 to $150 installed and are particularly relevant for older properties where the framing itself may have softened or settled over decades.
What Most Deadbolt Guides Don't Tell You About Older Urbana Homes
Wood Door Seasonal Movement Causes Binding
Central Illinois experiences some of the most pronounced humidity swings in the Midwest, cycling from summer humidity above 80 percent to winter conditions that drop indoor humidity below 20 percent. Older solid wood doors in Urbana expand in summer and contract in winter by as much as 1/8 inch across the door width.
A deadbolt installed with the bolt properly aligned in July may bind or fail to throw fully by February if the installer did not account for this movement range. The correct installation practice is to set the backset measurement with seasonal movement in mind, testing the bolt throw across a full throw cycle before finalizing the strike plate position. A locksmith unfamiliar with Central Illinois climate conditions may install correctly by their standards but produce a lock that binds by the first cold snap.
If your deadbolt increasingly resists throwing fully as temperatures drop, this is usually seasonal wood contraction pulling the door frame inward, not a failing lock. The fix is adjusting the strike plate position, not replacing the lock.
Double Cylinder Deadbolts and Fire Code in Illinois
Double cylinder deadbolts, which require a key on both sides, provide enhanced security against glass-panel doors where an intruder could break glass and reach the thumb-turn. However, Illinois fire code restricts their use in certain occupancy types. For most single-family homes in Urbana, they are permitted, but for multi-unit rental properties, particularly those with shared egress corridors, they may violate fire code requirements.
Before installing a double cylinder deadbolt on a rental property near UIUC, confirm the application with the City of Urbana Building Safety Division. A single cylinder deadbolt with a thumb-turn inside is the code-compliant default for most residential applications and the right choice for properties with tenant safety obligations.

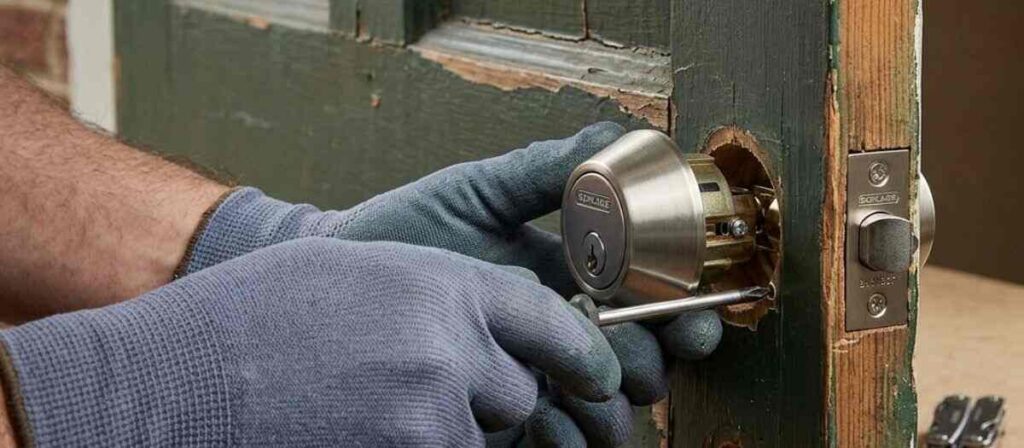

High-Security Locks Need Professional Installation on Old Doors
The Medeco M3 and Mul-T-Lock MT5+ are designed for precision installation in standard modern doors. Installing either on a door that has shifted, swelled, or settled over sixty years requires shimming, strike plate repositioning, and sometimes minor door planing before the lock will function correctly. DIY installation of a high-security lock on an older door that is no longer perfectly square often results in binding that defeats the lock’s security advantage. An IDFPR licensed locksmith with experience in older Champaign County housing stock is the correct installer for these products.
Frequently Asked Questions
The Schlage B60N is the most consistently recommended Grade 1 deadbolt for older Urbana homes. It fits non-standard door thicknesses from 1-3/8 to 1-7/8 inches, accommodates both backset measurements, resists picking and bumping, and installs cleanly without requiring door modification on most pre-1960s exterior doors.
For standard residential use, an ANSI Grade 1 deadbolt with a reinforced strike plate secured by 3-inch screws into structural framing provides the best practical security. The Schlage B60N or Medeco M3 combined with a door jamb reinforcement kit outperforms any lock installed with a standard builder strike plate, regardless of lock grade.
Grade 1 is the highest ANSI rating and the correct choice for any primary exterior door. Grade 2 is acceptable for secondary entries on low-risk properties. Grade 3 deadbolts, commonly found as builder hardware in older rental stock, should be replaced. A Grade 3 cylinder fails basic security testing that Grade 1 and Grade 2 locks pass.
In order of impact: upgrade the strike plate to a reinforced model with 3-inch screws first, then upgrade the deadbolt cylinder to a Grade 1 model, then assess whether the door frame and jamb need reinforcement with a door armor kit. This sequence provides the greatest security improvement per dollar spent and is applicable to most older Urbana wood-frame doors without requiring door replacement.
Both brands offer Grade 1 options that provide strong residential security. Schlage’s B60N carries a higher BHMA rating (AAA vs Kwikset’s AA) and slightly tighter manufacturing tolerances. Kwikset’s SmartKey technology makes rekeying easier without a locksmith. The better choice depends on your existing hardware: match the brand to your current lock cylinders to maintain keying-alike convenience unless you are upgrading all locks at once.
Not directly. A mortise lock pocket must be filled and a new cylindrical bore drilled before a standard modern deadbolt can be installed. For pre-1950 Urbana homes with original mortise preparations, a licensed locksmith should assess whether filling and reboring is appropriate or whether a mortise deadbolt conversion preserves more of the door’s structural integrity. Boring through an original door without proper assessment can compromise the door’s strength at the mortise location.
A standard Grade 1 deadbolt installation on a modern door runs $85 to $140 installed by a licensed locksmith in ZIP codes 61801 and 61802, including hardware. Older homes requiring backset adjustment, door planing, or strike plate relocation add $30 to $60 to that base cost. High-security locks like the Medeco M3 run $250 to $400 installed due to the higher hardware cost and precision installation requirements.
✅ Key Takeaways
First, check your door thickness and bore preparation before buying any deadbolt. A 1-3/8 inch older Urbana door and a mortise lock preparation both require compatibility verification that the major review sites never address because they test only on modern standard doors.
Second, the strike plate matters more than the lock brand for real-world kick-in resistance. A $10 reinforced strike plate with 3-inch screws provides more practical security improvement than upgrading from Grade 2 to Grade 1 when installed over a standard builder plate.
Third, older wood doors in Central Illinois move seasonally. A deadbolt installed in summer must be adjusted for winter contraction, or it will bind when temperatures drop. This is an installation quality issue, not a product defect.
If you have an older home in Urbana IL or Champaign County and want a deadbolt assessment before purchasing hardware, call Locksmith Urbana IL at (217) 288-2915. Describe your door age, existing lock type, and any binding or security concerns, and you will get a specific product recommendation and installation quote before anyone orders hardware.
